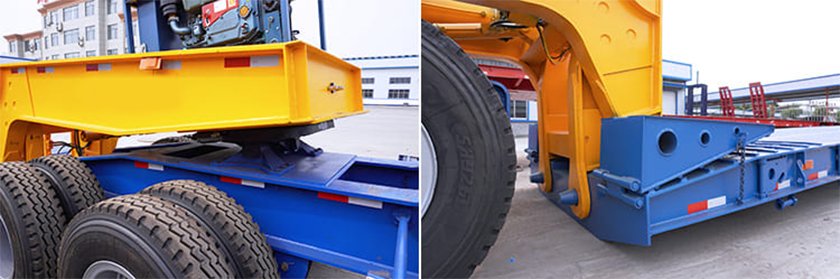

4 Axles 100T Detachable Gooseneck Lowboy Trailer with Dolly is suitable for the transportation of various kinds of mechanical equipment, large objects, highway construction equipment, large tanks, etc.
4 Axles 100T Detachable Gooseneck Lowboy Trailer with Dolly is suitable for the transportation of various kinds of mechanical equipment, large objects, highway construction equipment, large tanks, etc.
4 axles 100t detachable gooseneck lowboy trailer with dolly has a lower working platform height for transporting bulky goods. TITAN adopts high-strength structural steel with high tensile strength and durability.
TITAN optional Jost landing gear which is a world recognized famous brand accessory with a better bearing capacity and long service life.
Specification
| Overall dimension | 17900mm * 2500+250*2mm *2200mm(platform 800mm) |
| Loading capacity | 100 ton |
| Axles | 4 axles with 2 axles dolly |
| Tire | 16 units, 8.25R20/10.00R20/11.00R20/12R22.5 |
| Suspension | Mechanical suspension |
| Spring leaf | 120(W)mmx16(Thickness)mmx10 layers |
| Kingpin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
| Tare weight | About 9.5-19T |
| Main beam | Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel. |
| Bottom Platform | 5mm thick, checkered plate |
| Hydraulic cylinder | 12KW diesel engine with hydraulic station |
| Ramp | spring or hydraulic type |
| ABS | Optional |
| Valve | WABCO valve |
| Light | LED light (specially intended for oversea markets) |
| Voltage | 24V |
| Tool box | 1 set |
| Painting | Polyurethane paint, with long service lift, and avoid the vehicle get rust |
If you have any questions or needs about the product, please fill in the following form and we wll contact you as soon as possible.
