Full drawbar trailers and semi trailers are two mainstream cargo carrying trailer solutions widely used in road freight transportation. Many buyers tend to confuse these two types due to their similar outer appearances. Structurally, load bearing mode and connection method represent their core distinctions. Full drawbar trailers rely on their own complete chassis and drawbar linkage, while semi trailers obtain partial support from the towing tractor. Selecting the right trailer type directly influences transport efficiency, maneuverability and driving safety. This article compares their major differences and illustrates typical applications as well as key operating reminders for full drawbar trailers.

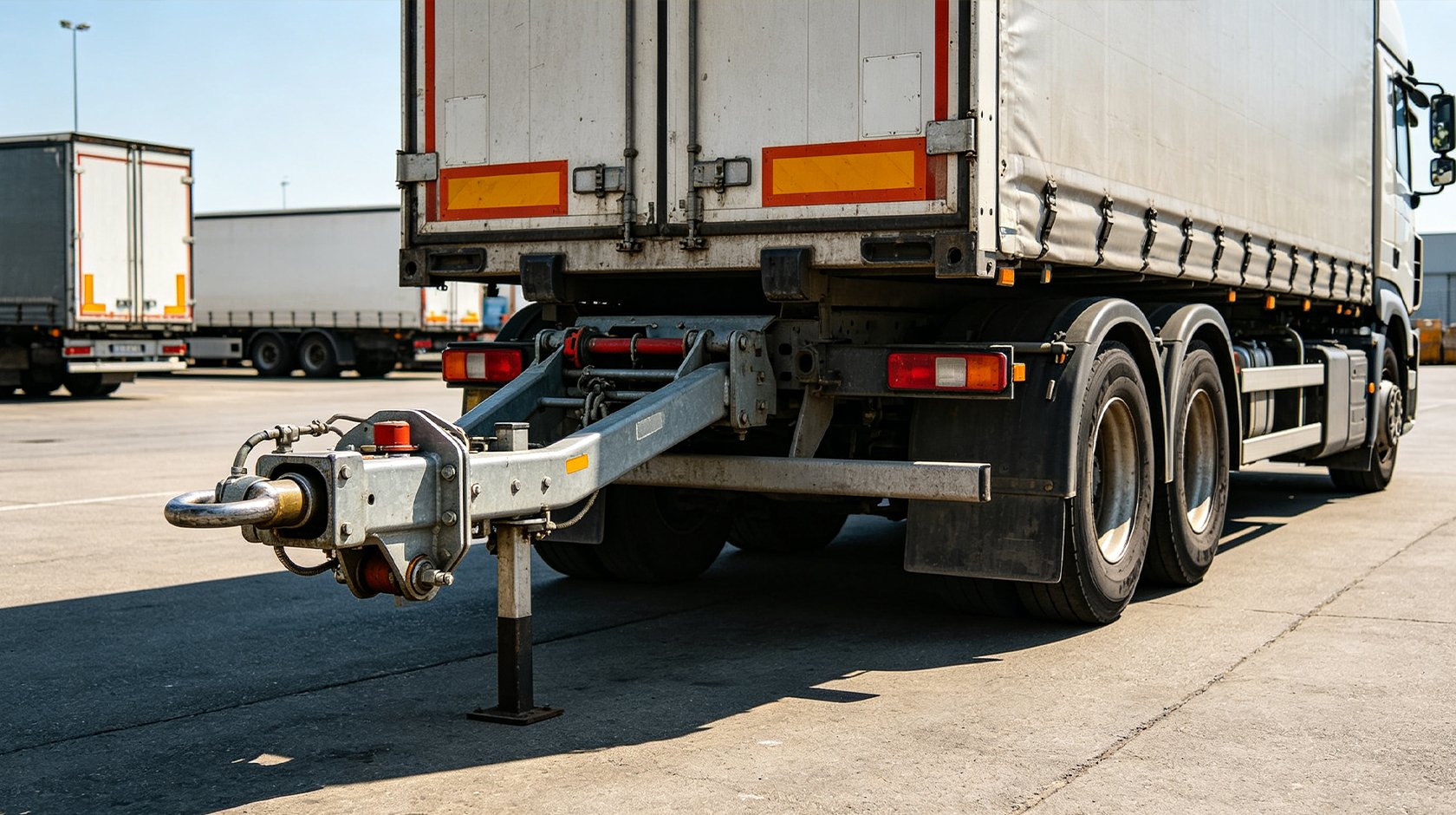

The most obvious gap lies in load bearing structure. A full drawbar trailer is equipped with a full set of axles and independent supporting chassis. All cargo weight is supported by its own wheels and frame. It connects to the towing truck via a drawbar and coupling hitch. The tractor only provides pulling force instead of bearing any trailer weight.
In contrast, a semi trailer has no complete front supporting structure. Its front portion rests on the tractor’s fifth wheel. Part of the cargo load transfers to the tractor unit. When detached, semi trailers need landing legs for temporary support.
Maneuverability also varies. Full drawbar trailers feature a larger turning radius, which limits performance in narrow roads. Semi trailers deliver better flexibility for highway long haul transport. In terms of total weight and configuration, full drawbar trailers can be matched with light to medium rigid trucks, whereas semi trailers require dedicated tractor heads.
Full drawbar trailers enjoy high adaptability for diversified short distance and medium haul missions. They are frequently used for agricultural goods transportation, carrying grain, forage and farm produce between rural zones and distribution centers.
They are popular in construction sectors for transporting building materials, pallets, machinery parts and bulk supplies. Since they can be towed by ordinary cargo trucks without special tractors, they bring great flexibility for small scale logistics firms.
Besides, full drawbar trailers serve regional distribution, factory internal transfer and urban peripheral freight. Multiple drawbar trailers can be combined for higher total cargo volume under compliant road regulations. They perform well on suburban roads and township routes where dedicated tractor heads are not readily available.
Hitch and drawbar assembly inspection comes first before departure. Operators must confirm firm coupling, lock pin engagement and safety chain installation. Loose connections may cause trailer separation during driving. Tire pressure, braking system, signal lights and suspension components need thorough checks as well.
Pay extra attention to turning and reversing. Owing to the long drawbar structure, sharp turns can lead to trailer cutting in, which may scratch other vehicles or road facilities. Reversing demands skilled operation and slow speed.
Never exceed rated payload. Overloading will damage axles, worsen braking effect and raise roll over risks. Regular maintenance for coupling parts, brake linings and drawbar hinges is required. Lubricate movable joints periodically. When driving downhill, apply brakes in advance and maintain safe following distance.
Full drawbar trailers and semi trailers serve different transportation scenarios. Full drawbar trailers stand out for flexible matching with ordinary trucks and independent load bearing capacity. Following inspection rules and driving precautions can maximize its advantages while avoiding traffic accidents. Proper understanding of both trailer types helps fleet operators make cost effective purchasing decisions.
