For the sulfuric acid tanker trailer, CHARY produces the most strong acid tank body to make sure safety. CHARY adopts 5mm thick steel to weld the tankers, common sulfuric acid tanker trailer materials are stainless steel, carbon steel, aluminum, etc.
Advantages
1. With safety devices: The manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.
2. The tank body is automatically welded by an advanced large-scale special welding machine.
3. The CHARY tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.
4. Water-filled test equipment Water tank: To ensure the high seal of the tank body and avoid the leaks oil.
6. The wave board reduces the impact of the liquid on the tanker.
7. Advanced paint system and polyurethane paint. Appearance is beautiful, use time is above 5 years.
8. We adopt famous brand parts for our tank trailers, it saves costs & ensures long-time service.
Specification
| Overall dimension | 11500mm * 2500mm *3700mm |
| Transport | sulfuric acid |

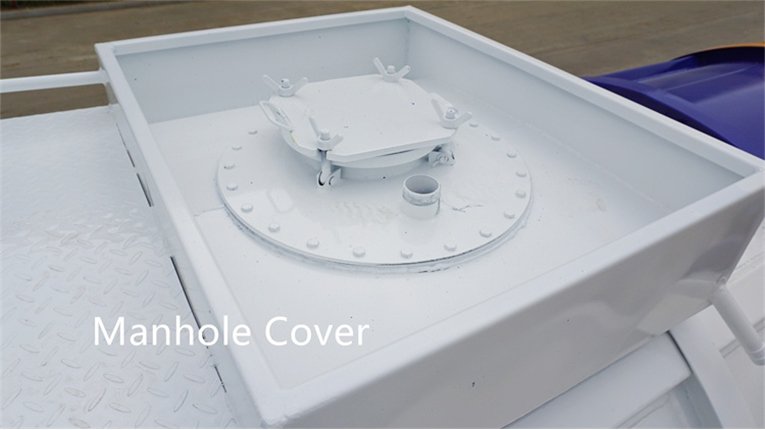

| Manhole cover | stainless steel manhole cover |
| Bottom valve | Aluminum API pneumatic bottom valve |

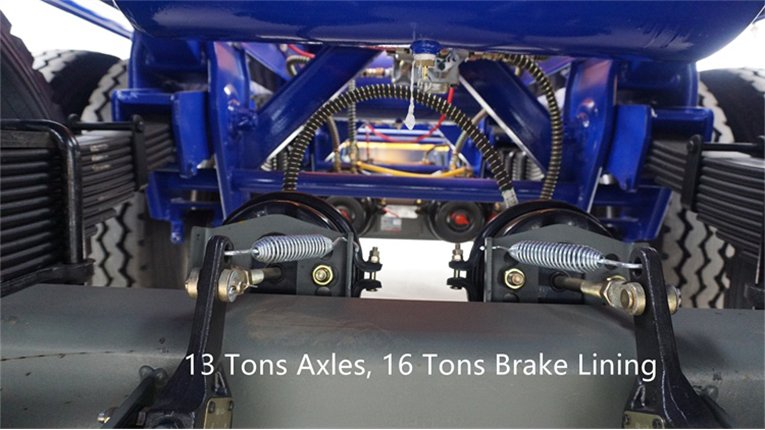

| Axles | 3 axles |
| Suspension | Heavy-duty mechanical suspension |

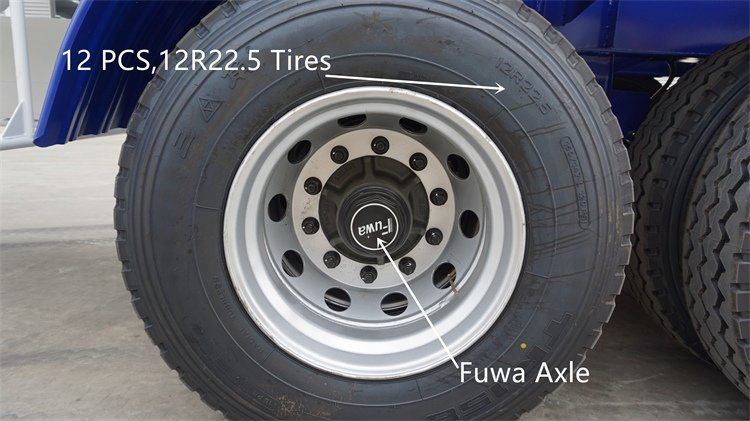

| Tire | 12 units |
| Discharging Pipe | 4'' rubber pipe, 6m/piece, 2 pieces |
| King pin | 2/3.5 inch |
| Landing gear | JOST |
