A hydraulic cylinder makes bulk unloading efficient, but reliable performance depends on correct operation and regular care. Poor ground conditions, uneven loading, contaminated oil and neglected mountings can damage equipment or cause serious accidents. Using Evergo’s tipper range as a reference, this article explains practical precautions for operating and maintaining a tipping cylinder, while recognising that the installed equipment’s manual determines its exact limits.
Evergo’s three-axle U-type dump trailer is intended for bulk materials such as sand, gravel and minerals. Its specification lists a hydraulic lifting system and a cylinder designation, “240-5-7800”. This product description does not establish a universal operating pressure, oil grade or maintenance schedule.
Before use, obtain the cylinder identification details and the trailer’s operating instructions. Confirm compatibility between the cylinder, tractor-mounted hydraulic kit, pump, hoses and control valve. Never increase a relief-valve setting to overcome a reluctant load. The cylinder lifts the body; it does not stabilise an unsafe vehicle.
With the body lowered and the vehicle secured, examine accessible cylinder mountings, retaining pins, brackets, rear hinges, hoses and connections. Look for loose hardware, abrasion, cracking, leakage and damaged cylinder surfaces. Remove the equipment from service when a defect could affect safe operation.
Check the hydraulic oil level under the conditions specified by the manufacturer, normally with the body fully down. Clean hydraulic couplings before connection and confirm that they are correctly secured. Also check tyre condition, controls and warning indicators. A quick inspection should identify emerging problems before the cylinder is asked to lift a loaded body.
Position the articulated vehicle straight, with tractor and trailer aligned, on firm, level ground capable of supporting the complete combination. Check overhead clearance and keep the tipping area clear of people, equipment and other obstructions. Avoid side slopes, unstable edges and unsuitable wind conditions.
Distribute material evenly and remain within the permitted load limits. Prepare the tailgate according to its operating instructions, keeping clear of its movement and the discharge area. Wet, frozen or compacted material may stick and release unevenly; the driver should consider this before raising the body. HSE tipping guidance
Operate the power take-off and tipping controls according to the installed system’s instructions. Raise the body smoothly at the prescribed pump speed, without abrupt control inputs. Observe the unloading process from the designated control position and stop lifting once the required tipping position is reached.
If material sticks, the body leans or movement becomes abnormal, stop and follow the approved procedure, lowering the body when safe. Never shake a load free by sudden vehicle movements. Lower the body in a controlled manner, confirm that it is fully seated, secure the tailgate and disengage the PTO before normal travel. Edbro C-series operator manual
Use clean hydraulic oil of the specified grade for the operating climate. Keep filling equipment, caps and breathers clean, and follow the prescribed oil and filter replacement schedule. Repeated topping-up should trigger investigation of the cause rather than become routine.

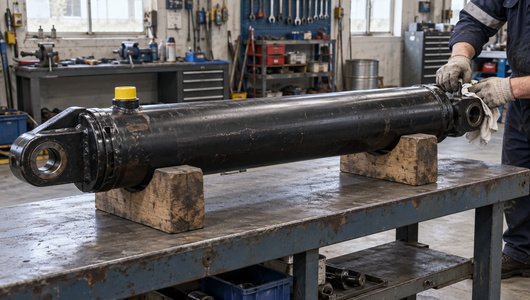

Protect exposed cylinder stages from impact, corrosion and abrasive contamination. Avoid steam cleaning the tubes or directing high-pressure washing at vulnerable seals and breathers. Inspect wipers and sealing areas for deterioration. Lubricate only the mounting points identified in the manual; some designs use maintenance-free components. Do not assume that exposed cylinder tubes require external grease. Edbro maintenance guidance
Whenever possible, perform maintenance with the empty body fully lowered. Apply the parking brake, chock the wheels where required, isolate the power source and prevent unintended operation. Release residual hydraulic pressure using the manufacturer’s procedure before opening connections.
If access beneath an empty raised body is necessary, install the specified, adequately rated mechanical body prop using the approved procedure. Never rely on hydraulic pressure alone, and never work beneath a raised loaded body. Do not use improvised supports.
Never search for a pressurised leak with bare hands. Hydraulic fluid can penetrate skin; suspected injection requires immediate emergency medical assessment. Repairs, pressure testing and bleeding should be performed by trained personnel using compatible components and the correct procedure. HSE hydraulic-system precautions, injection-injury alert, HSE body-support guidance
Reliable tipping cylinders depend on disciplined operation, clean oil, sound mountings and timely defect reporting. Keep service records and adjust inspection frequency to working conditions and manufacturer requirements. For an Evergo tipper semi-trailer, confirm the actual cylinder specification and support arrangements before placing the vehicle into service.
