Rear dump semi-trailers are widely used in mining, construction, sand and gravel transportation, coal hauling, and bulk cargo logistics. One of the most important components of a rear dump semi-trailer is the hydraulic lifting system. The layout position of the hydraulic cylinder directly affects lifting stability, unloading efficiency, maintenance convenience, and the overall service life of the trailer.
As a professional semi-trailer manufacturer, Evergo Vehicle provides various rear dump semi-trailer solutions designed for different transportation conditions and heavy-duty applications. Understanding the differences between hydraulic cylinder layouts helps transportation companies choose the most suitable trailer configuration for their operational needs.
The hydraulic cylinder is responsible for lifting the trailer body during unloading operations. Different cylinder positions influence the trailer’s lifting angle, force distribution, structural stress, and unloading smoothness.
A suitable cylinder layout can improve unloading efficiency, reduce rollover risks, and enhance trailer durability. On the other hand, an unsuitable layout may cause uneven lifting, unstable unloading, or excessive pressure on the chassis and trailer body.
For heavy-duty transportation and frequent unloading operations, selecting the correct hydraulic system configuration is extremely important.

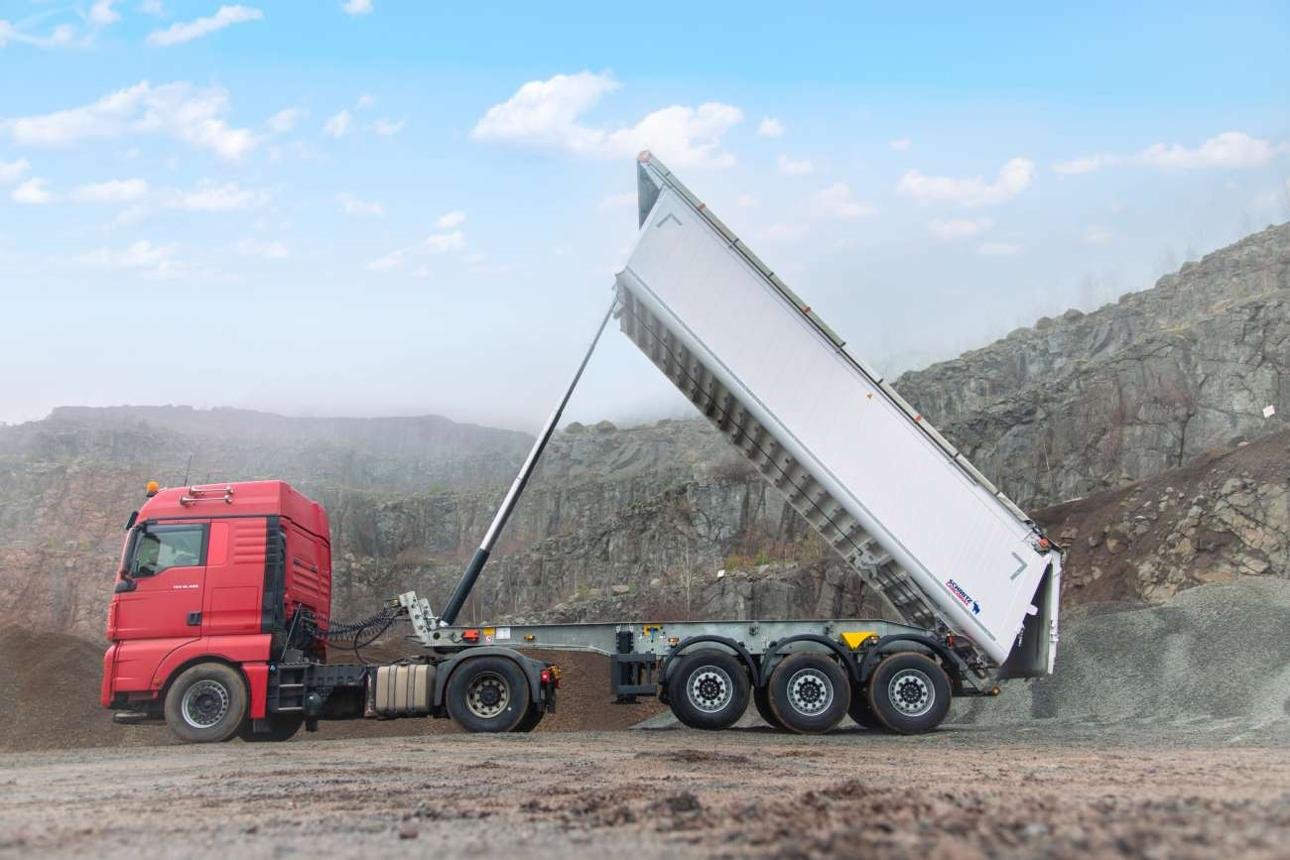

The front-mounted hydraulic cylinder is the most common configuration used in rear dump semi-trailers. In this design, the hydraulic cylinder is installed at the front section of the trailer body near the kingpin area.
When hydraulic pressure is applied, the cylinder extends upward and pushes the trailer body into a tipping position for unloading.
Front-mounted cylinders provide strong lifting force and a large unloading angle. They are highly suitable for transporting heavy bulk materials such as sand, gravel, coal, and ore.
This layout also offers relatively simple structural design and stable lifting performance. Because the lifting force is concentrated at the front of the trailer, unloading efficiency is generally very high.
The front-mounted design places significant stress on the trailer front structure and chassis during lifting operations. If the trailer body or chassis is not reinforced properly, long-term heavy-duty use may lead to structural fatigue.
In addition, front-mounted cylinders usually require higher installation space and larger hydraulic systems.

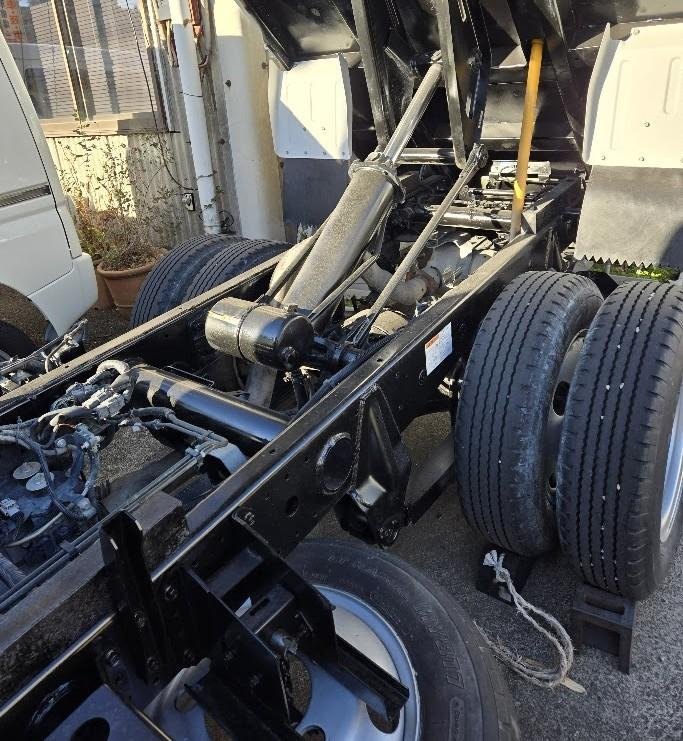

Underbody hydraulic cylinders are installed beneath the trailer body instead of at the front. This configuration uses linkage mechanisms to lift the dump body during unloading.
This design is commonly found in medium-duty dump trailers and applications requiring lower center of gravity.
One major advantage of the underbody cylinder layout is improved vehicle stability. Because the hydraulic components are positioned lower, the trailer maintains a lower center of gravity during transportation and lifting operations.
This design also reduces wind resistance and improves overall trailer appearance.
Underbody systems are often easier to protect from external damage caused by stones, dust, or harsh operating environments.
Compared with front-mounted cylinders, underbody hydraulic systems usually provide a smaller lifting angle and slightly lower lifting efficiency.
The linkage structure may also increase mechanical complexity and maintenance difficulty over time.
Some heavy-duty rear dump semi-trailers use multiple hydraulic cylinders to distribute lifting force more evenly across the trailer body.
This configuration is often used for oversized dump trailers transporting extremely heavy materials in mining or construction industries.
Multi-cylinder layouts improve lifting balance and reduce stress concentration on individual structural components. They also enhance lifting stability during uneven loading conditions.
For large-capacity dump trailers, this design can significantly improve operational safety.
However, multi-cylinder systems are more expensive and require more complex hydraulic control systems. Maintenance costs are also generally higher due to the increased number of hydraulic components.
Different cargo materials require different unloading characteristics.
· Sand and gravel transportation usually requires strong lifting force and large tipping angles.
· Coal and agricultural bulk cargo may prioritize unloading efficiency and stability.
· Mining applications often require reinforced multi-cylinder systems for extreme heavy loads.
Road conditions and work environments also influence cylinder selection.
· Mining areas require stronger and more durable hydraulic systems.
· Urban construction projects may prefer compact and stable underbody systems.
· Long-distance transportation often benefits from lightweight and fuel-efficient trailer designs.
Transportation companies should consider maintenance convenience and operating costs. Simpler hydraulic systems are generally easier and less expensive to maintain, while more advanced systems may offer better performance for specialized applications.
The hydraulic cylinder layout of a rear dump semi-trailer plays a critical role in unloading efficiency, operational safety, and structural durability. Front-mounted cylinders provide strong lifting performance for heavy-duty applications, underbody systems improve stability and compactness, while multi-cylinder configurations offer balanced lifting for extreme heavy-load transportation.
Choosing the right hydraulic system depends on cargo type, operating conditions, transportation requirements, and maintenance considerations. As a trusted manufacturer, Evergo Vehicle continues to provide reliable and durable rear dump semi-trailer solutions for global transportation industries.
With the correct hydraulic cylinder configuration, transportation companies can improve unloading efficiency, reduce operational risks, and achieve more stable and cost-effective logistics performance.
