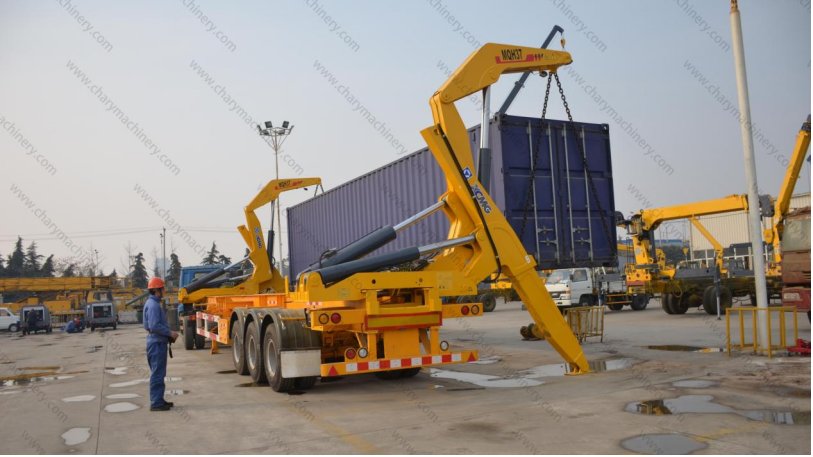

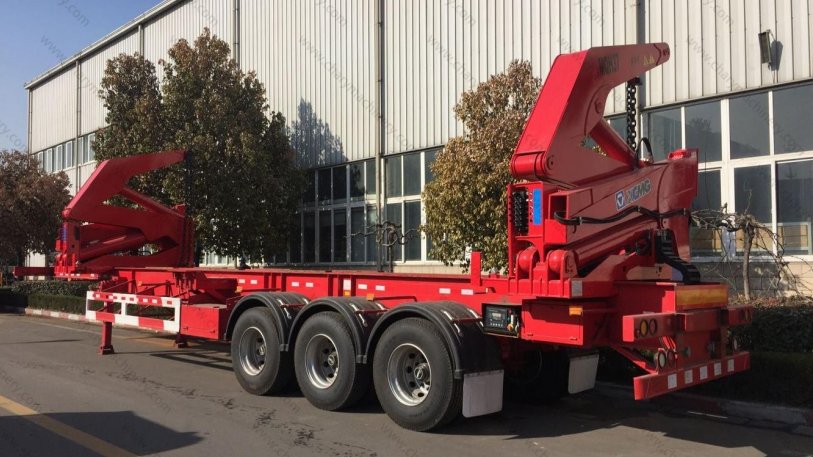

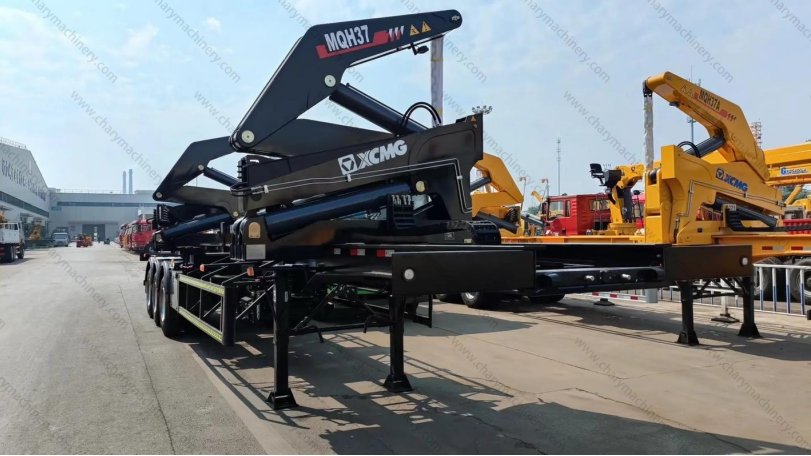

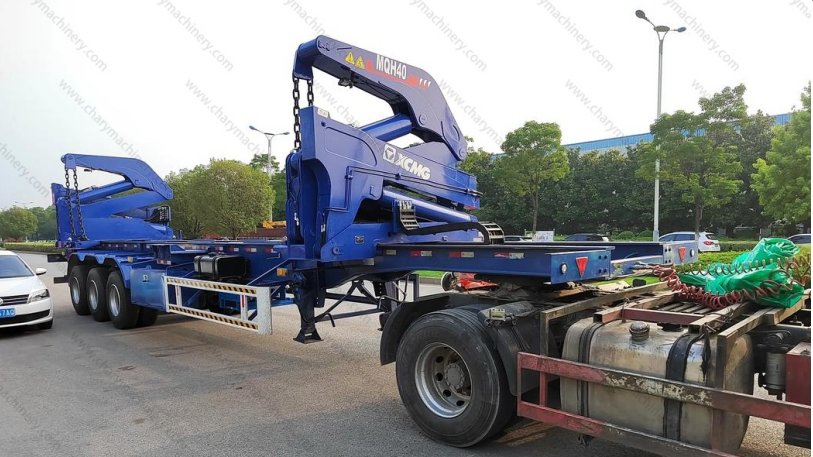

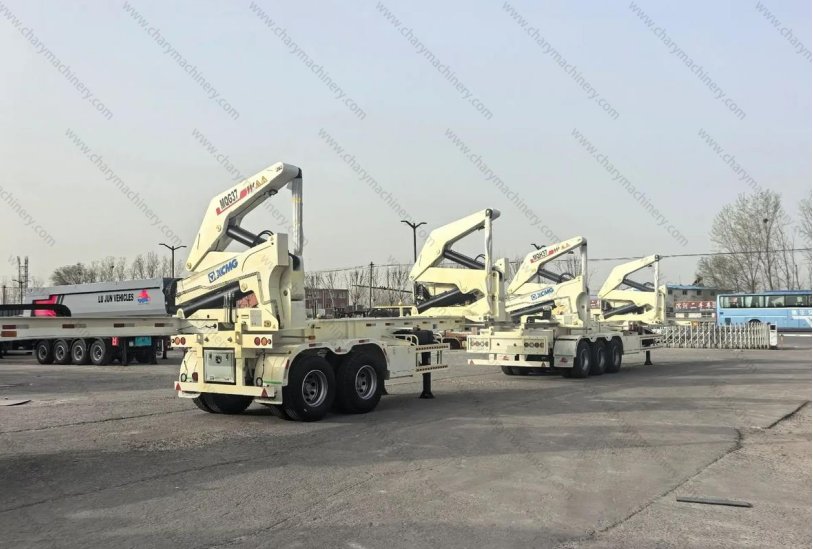

Side lifter is a specialized trailer-mounted crane designed for the efficient loading, unloading, and transportation of shipping containers. It eliminates the need for additio.
Core Benefits
Self-Sufficiency
Eliminates dependency on external lifting equipment, reducing operational costs and delays.
Operational Versatility
Handles 20ft, 40ft, 45ft containers, and can stack up to 2-3 units high.
Exceptional Efficiency
A full loading/unloading cycle takes only 2-4 minutes, significantly boosting productivity.
Unmatched Flexibility
Operates in confined spaces and locations with no docks, like construction sites.
Applications
Ports & Terminals
For rapid transshipment between ships, trucks, and rail.
Inland Depots
Enables efficient stacking and management of container yards.
Construction Sites
Delivers and places containers used as offices, storage, or material sheds directly on-site
Intermodal Logistics
Provides a seamless link in the supply chain, facilitating door-to-door delivery.
Dimension | Internal dimensions 9500x2350x1800 (mm) |
Main bean |
Height 500, top 20, bottom 20, middle 12, bottom 8, side 6, side beam bending parts |
Payload | ≦80T |
Kingpin | 90 Assembled |
Axles | 13 tons x 4 |
Suspensions | American mechanical suspension 60 pins |
Leaf springs | 10 pieces, 13mm thick 90mm wide x 8 |
Tires
| I2R22.5x16 |
Rims
| 9.0*/22.5x16 |
Landing gear | 28T |
Spare tire rack | 1 spare tire rack, 1 tool box |
Brake system | Relay valve: six-hole C-type. T30/30+T30 air chamber, 40L gas tank. |
Electric system |
One 24V 7-pin ISO standard socket With brake light, turn signal, reverse light, width light, mirror fog light One set of 6-pin standard cables. |
Other | Domestic oil cylinder 240-5-7800, straight beam structure, rear door lifting, with basic electric tarpaulin, full set of standard tools. Others are factory standards. |
Color | According to customer requirements (Powder coating + wax spray) |
